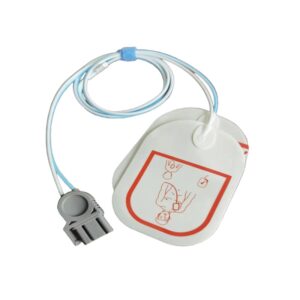

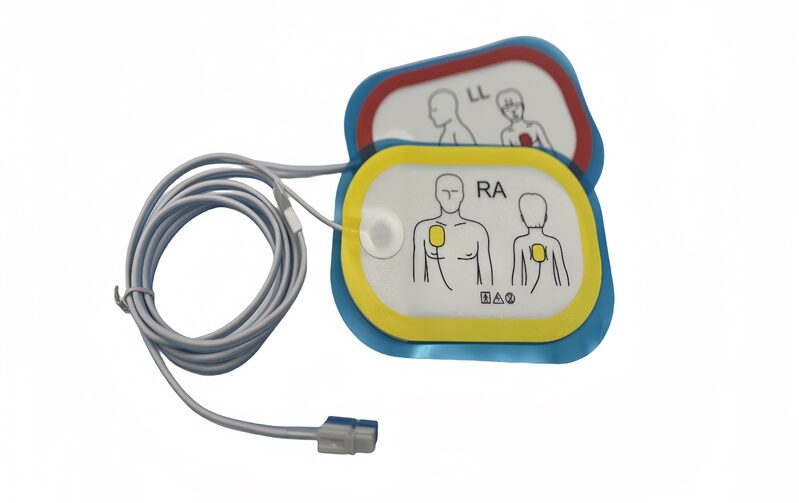

Defibrillator AED Pad Electrodes

Defibrillator AED Pad Electrode Testing Report

The testing report of PAD

Introduction of Defibrillation AED Pad Electrodes:

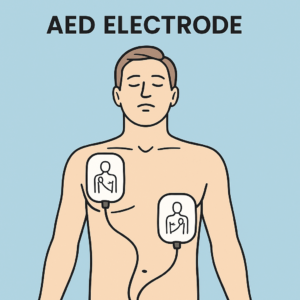

The conductive gel on defibrillation electrodes provides better coupling and enhanced defibrillation while adhering stably to the skin to prevent burns caused by current overload. Defibrillation electrodes use pulsed electrical currents applied to the heart to administer electric shock therapy to eliminate heart rate arrhythmias and restore the heart to sinus rhythm for extracorporeal defibrillation, resuscitation, monitoring, and pacing. Compared with traditional defibrillation accessories, it can free the operator’s range of motion, and it has the advantages of high efficiency of rescue and treatment, fast action, and easy operation.

Defibrillation Electrodes Parameters:
1) AC impedance:50 Ω(10Hz)
2) DC detuning voltage:≤100mv
3) Compound detuning instability and internal noise: 5min internal ≤100μV (peak-to-peak)
4) Defibrillation overload recovery: 5s electric potential ≤ 100mv, 30s change rate ≤ 11mV/s
5) Bias current tolerance: voltage change≤70mv
6) Dielectric strength: AC1500V
7) Insulation resistance: ≥500 MΩ
