6 wire silicone cable with 2 wire 24AWG and 2 Twisted Pair 28AWG
$3.79

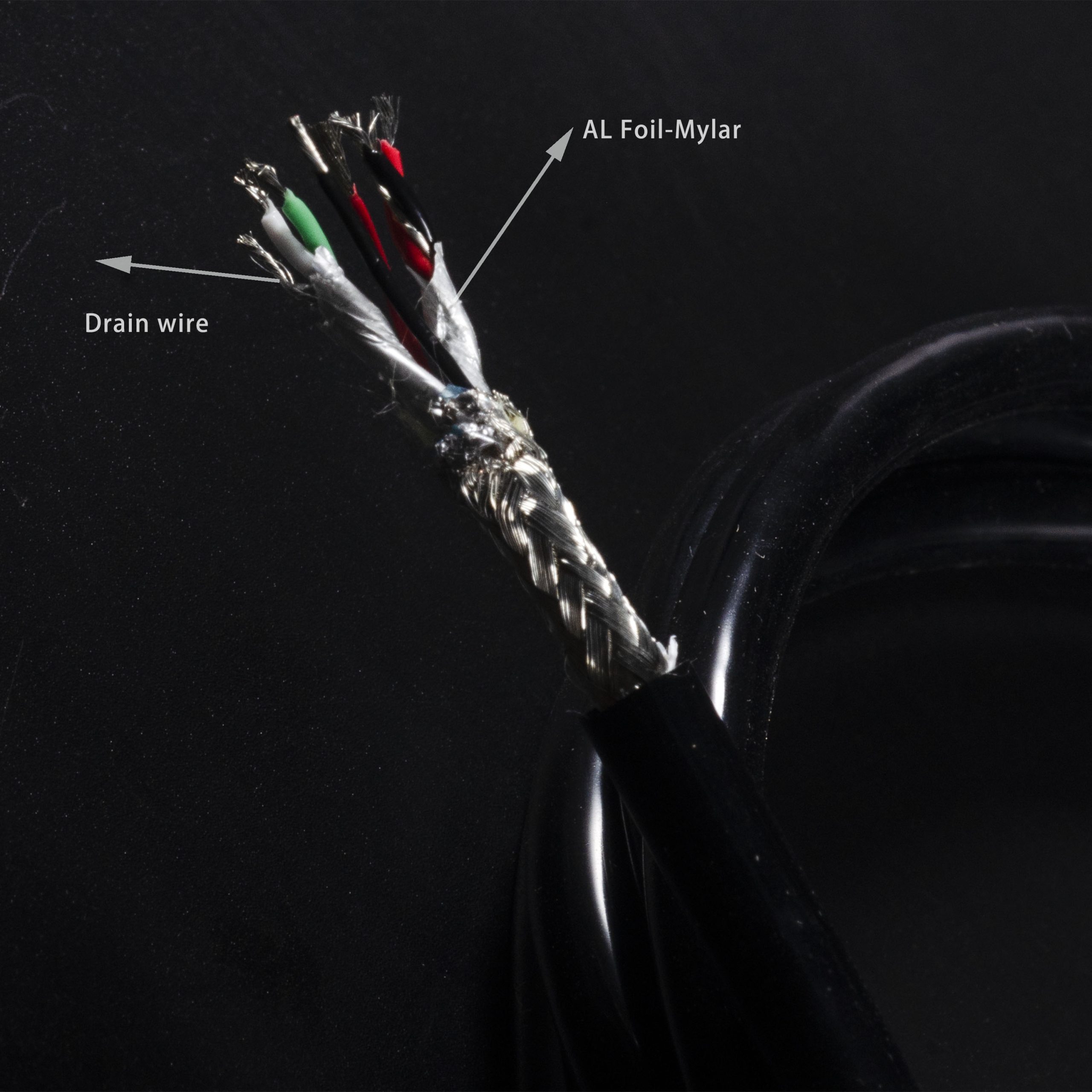

this Braided shield 6 wire silicone cable includes 2 Twisted pair (28 awg teflon wire Coax,there is drain wire inside the wrapper of the twisted pair ) and 2 core 24 awg teflon wire,the overall diameter is OD 6.5mm.This composite silicone cable , applied in other high temperature or autoclave sterrilization conditions where there is data transmission(2 STP)
| Specification | Cable Name | Medical Silicone wire | |
|---|---|---|---|
| Cable Specification | 28AWG*1P+EAM）*2+24AWG*2C+Filler+AB | ||
| Comply with RoHS | |||
| Items | A:4C*28AWG | B: 2C*24AWG | |
| conductor | material | Tinned copper | Tinned copper |
| Specification | 19/0.08TC | 41/0.08TC | |
| O.D. | 0.40mm | 0.58mm | |
| insulation | material | FEP | FEP |
| Mini Average thickness | 0.37 | 0.13 | |
| O.D. | 1. 15±0.05 | 0.85±0.05 | |
| Twisted | material | 1P+Drain wire 19/0.08TC | / |
| Inner Braiding | material | / | / |
| Coverage | / | / | |
| Inner Shield | material | AL+PET | FEP |
| Conductive | Inside | 0.25mm | |
| O.D. | 25% Min | 1.8±0.05mm | |
| Cabling | material | Cotton + Kevlar + AL-Mylar | |
| Outer shield | material | 16/ 12/0. 1TC | |
| Overlap rate | 90%MIN | ||
| Tape | material | Non-woven | |
| Jacket | material | Medical Silicone Rubber | |
| Mini Average thickness | 0.6MM | ||
| O.D. | 6.5±0.15 |
