$2.79

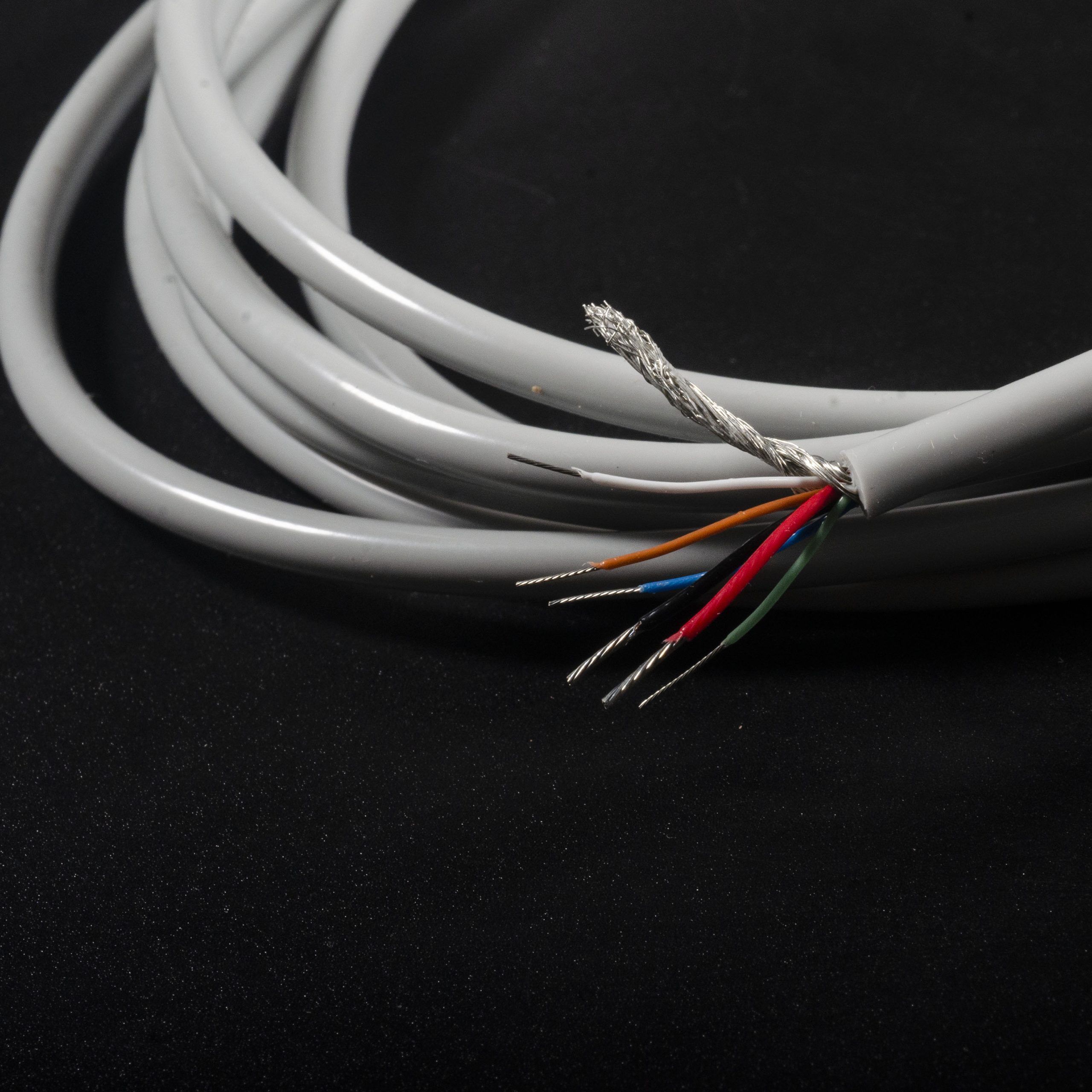

this 6 core silicone cable includes 2 coaxial (30 awg teflon wire Coax ) and 4 core 28 awg teflon wire,the overall diameter is OD 5.6mm.This composite silicone cable , applied in other high temperature or autoclave sterrilization conditions where there is high frequency data transmission(2 coaxial)
| Specification | Cable Name | Medical Silicone wire | |
|---|---|---|---|
| Cable Specification | RF1.37 30AWGCoax*2C+28AWG*4C+AB | ||
| Comply with RoHS | |||
| Items | A:2C*30AWG | B: 4C*28AWG | |
| conductor | material | Silver-plated copper | Silver-plated copper |
| Specification | 7/0.10mm | 19/0.08mm | |
| O.D. | 0.3MM | 0.4MM | |
| insulation | material | FEP | FEP |
| Mini Average thickness | 0.29MM | 0.20MM | |
| O.D. | 0.88MM±0.02MM | 0.80MM±0.03MM | |
| Tape | material | Copper Foil | |
| Braiding | material | 0.05SPC | |
| Coverage | 90%MIN | ||
| Inner jacket | material | FEP | |
| Mini. thickness | 0.13mm | ||
| O.D. | 1.4±0.05mm | ||
| Cabling | material | 2Coax+4C+Fiiler+AL/Mylar | |
| Overlap rate | 25%MIN | ||
| Braiding | material | 0.1TC | |
| Overlap rate | 90%MIN | ||
| Jacket | material | Medical Silicone Rubber | |
| Mini thickness | 1.0MM | ||
| O.D. | 5.6MM±0.2MM |
